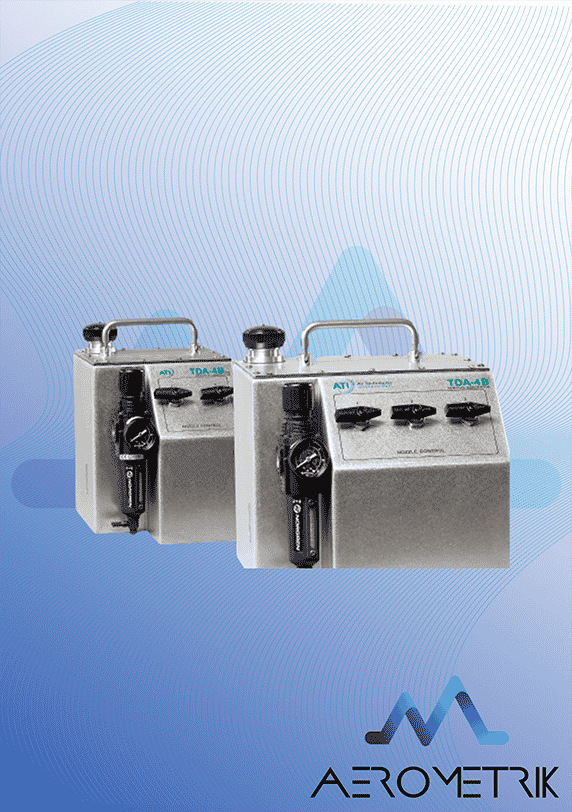

Laskin Nozzle Generator ATI Models TDA 4B/4B Lite
. Airflow rates from 685 – 14.000 m3/hr for a wide range of testing requirements.
. Flex-fuel capabilities, allows for the use of different reagents.
. Rugged Portability.
. Safe and reliable Operation.
. Lightweight and rugged, ideal for remote locations.
Features
The 4B series family of Laskin-Nozzle aerosol generators are durable, portable, and reliable. Designed for testing filter systems ranging from small glove boxes to large cleanroom plenums, ATI Laskin-Nozzle generators provide the ideal solution for creating a polydispersed, submicron aerosol to certify and qualify in-situ filter systems.
4B:
Dimension: 25 cm x 28 cm x 26 cm
(L x W x H): (10 in. x 11.25 in. x 10.5 in.)
Weight: 7.3 kg (16 lb)
Aerosol Output: 50 – 8,100 cfm
Concentration:
100 μg/l @ 810 cfm
10 μg/l @ 8,100 cfm
Generator Type: Six Laskin-Nozzle Style Aerosol Generator
(1 to 6 Laskin-Nozzles)
Compressed Air: min 2.65 cfm/nozzle @ 20 psig
Aerosol Type: Polydispersed (cold)
4B Lite:
Dimension: 19 cm x 28 cm x 26 cm
(L x W x H): (7.6 in. x 11.25 in. x 10.5 in.)
Weight: 5.5 kg (12 lb)
Aerosol Output: 50 – 4,050 cfm
Concentration:
100 μg/l @ 405 cfm
10 μg/l @ 4,050 cfm
Generator Type: Three Laskin-Nozzle Style Aerosol Generator
(1 to 3 Laskin-Nozzles)
Compressed Air: min 2.65 cfm/nozzle @ 20 psig
Aerosol Type: Polydispersed (cold)
Accessories
. Hose Adapter Kit: (hose not included), used to introduce aerosol remotely, connects easily to the standard outlet collar.
. Heavy Duty Case: Heavy duty, water-proof transport case with wheels. Accommodates either a 4B, 4B-Lite or 6D generator, with space for the optional hose adapter.
Associated services
. Training session on site or in our office related to regulation, equipment use and data treatment .
. Calibration and metrological services are performed in our laboratory located at Betton (35).
