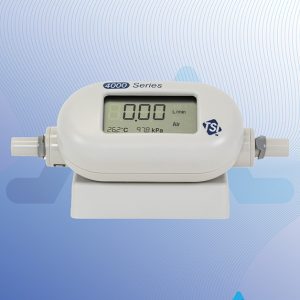

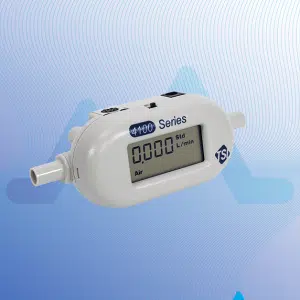

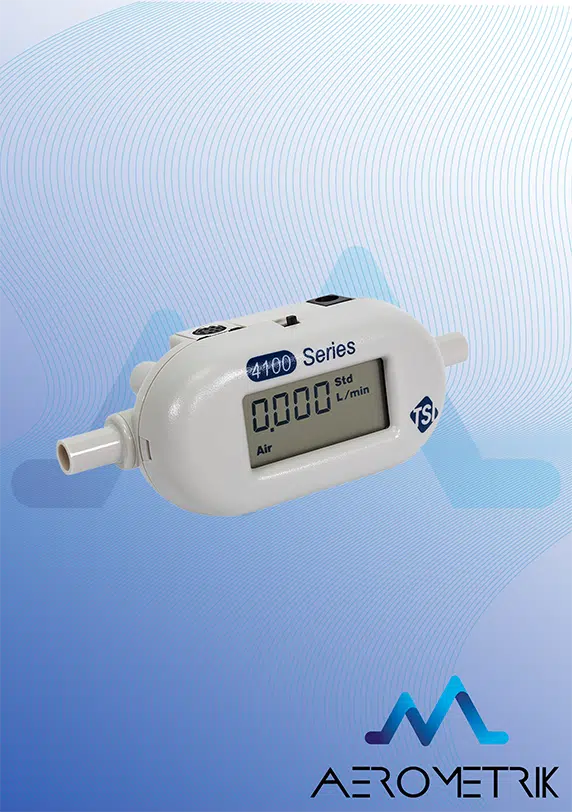

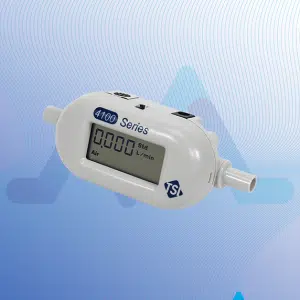

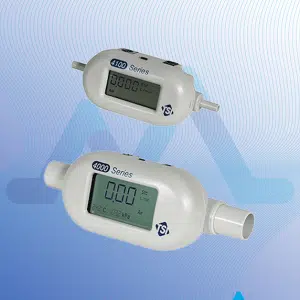

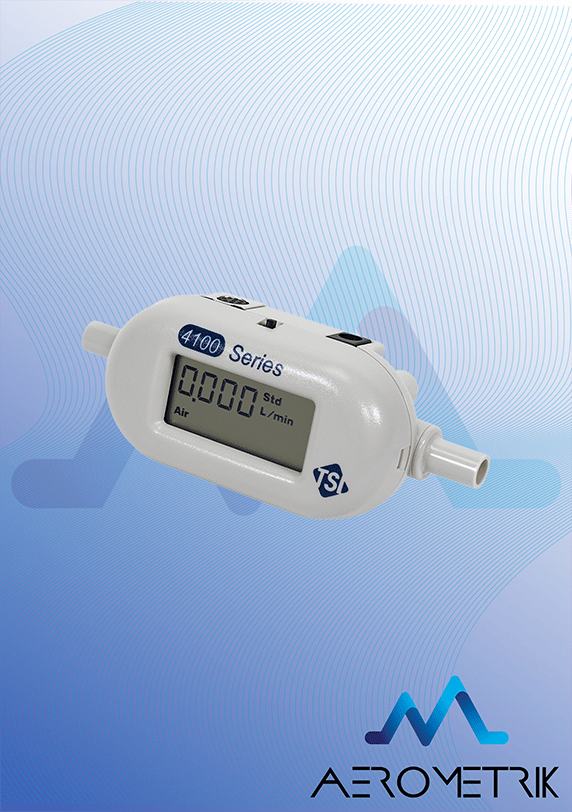

Flowmeters TSI 4000 Series

. The TSI 4000 Series inline flow meters were designed for ultra-low pressure loss to minimize flow circuit back pressure and its impact on the system.
. The meters include digital and analog outputs for flow rate, absolute pressure, and temperature.
. Volume measurements can be made through the RS232 digital interface.

Download the product sheet

SKU: a5e8a51cac2b Categories: Flowmeters, Gas flow measurement, TSI

Need information

Share Product

Click here

Features

. Accuracy of 2% of reading (not full scale)
. High turndown ratio
. Multi-gas, user-selectable
. 4 ms response to changes in flow
. Ultra-low pressure drop
. RS 232 interface for digital outputs and configurable device options
. Voltage output of flow rate
. Measure flow rate, temperature, and pressure (display unit only) in one instrument
. Built-in temperature and pressure compensation
. NIST-traceable calibration certificate included with purchase

Available versions

Download the product sheet	Measurement range	Measurement range	Calibration
4040	0-300 L/min	22 mm ISO	Air, O2, N2
4045	0-300 L/min	3/4 inch tube	Air, O2, N2
40401	0-300 L/min	22 mm ISO	Air
4043	0-200 L/min	1/2 inch tube	Air, O2, N2
41401	0.01-20 L/min	1/4 inch tube	Air
4140	0.01-20 L/min	1/4 inch tube	Air, O2, N2
4143	0.01-20 L/min	3/8 inch tube	Air, O2, N2
41403	0.01-20 L/min	1/4 inch tube	N2O, Air, O2, N2
41433	0.01-20 L/min	3/8 inch tube	N2O, Air, O2, N2

Applications

TSI flowmeters are essential for all equipment requiring air or other gases to be sampled.

TSI flowmeters are the ideal solution for periodic control of flow rates or for metrological verification of your equipment (PAP, individual sampling pumps, etc.).
