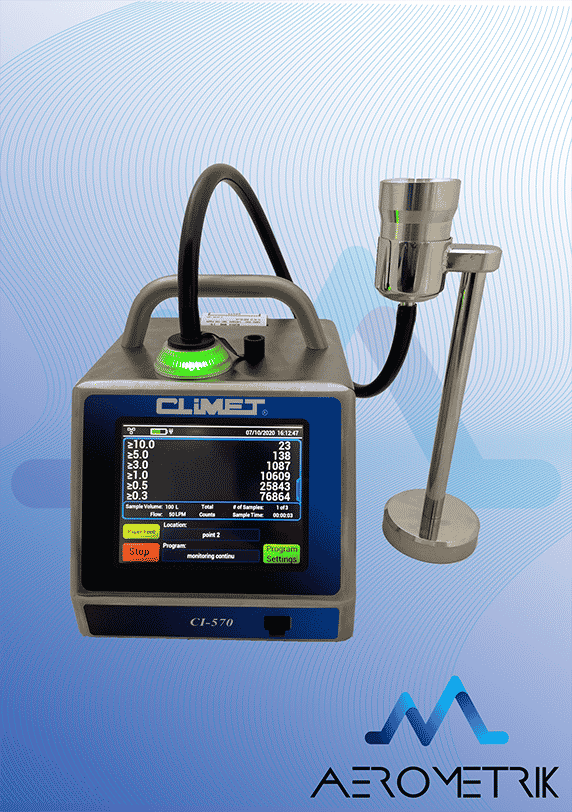

Portable Airborne Particle Counter CLIMET CI-570

Portable Airborne Particle Counter CLIMET CI-570

. New generation NextGen series.
. The lightest and smallest particle counter for ISO 7 and ISO 8 classes.
. Flow rate: 50 LPM.
. 6 channels: from 0.3 to 10 µm.
. Integrated PDF reports/Audit trail and user traceability.
. Complies with ISO 21501-4.

Download the product sheet

Need information

Share Product

Click here

Product Specifications

. Channel sizes: 0.3, 0.5, 1, 3, 5 and 10 μm.
. Flow Rate: 50 LPM.
. Sample Volume Control: Flow Control and internal mass flow meterFlow Rate tolerance of ± 5%.
. Sample Volume is user-adjustable in cubic meters, cubic feet, or liters.
. Size calibration: < ±10% with internal pulse height analyzer (PHA) in compliance with ISO 21501-4.
. Size resolution: ±4% to ±10% typical. Substantially exceeding ISO 21501-4 of < ±15%.
. Count Efficiency: 50% Count Efficiency (a measure of accuracy): <±10% to Climet standards.
. False Count Rate: Equal to or better than ISO 21501-4 specifications.
. Exhaust: HEPA filtered exhaust uniquely factory tested to ensure no leaks and certified to ISO Class 3 emissions.
. Sanitation: Compatible with all standard cleanroom sanitation and sterilization procedures, including Vaporized Hydrogen Peroxide (VHP).
. Data Interface Options: OUTPUT: RS-232, Wired Ethernet, Wi-Fi, and USB, INPUT: RH/Temp Port (RH/Temp probe sold separately).
. Laser and Collection Optics: Patented metal ellipsoidal mirror uniquely minimizes particle shape (morphology) on sizing. No plastic.
. Enclosure: Stainless steel enclosure is impact resistant and easily cleaned and sanitized.
. Display: Industry’s first color capacitive touch screen similar. Allows user to pinch-to-zoom and swipe.
. Alarms: Triggers at (i) Counts (User defined “Alert” and “Action” levels), (ii) Laser Status, and (iii) Flow Rate Deviation.
. Light Ring: Enable/disable, 5-colors, patters, etc.
. Programmable: Five Security Levels, 300 Programs, 300 User ID’s plus administrator with password security, 300 location IDs, and more than 1,000,000 samples. All models uniquely come standard with Unit-to-Unit cloning.
. Printer: Fully integrated thermal printer.
. Battery/Electrical: 5 hours.
. Continuous at 100% duty cycle w/ Zero Count Filter Installed.
. Dimensions & Weight: 8.38” x 7.4” x 9.48” = 587.9 cubic inches. Smallest portable on the market! 9.4 Lbs. with battery & 8.4 Lbs. w/o battery. The lightest industrial / pharmaceutical grade portable particle counter!
. Environmental: Temperature: 0-36°C (32-97°F). Humidity: 10-90% relative humidity, non-condensing.

Included accessories: Internal thermal printer, internal battery charger, battery, stainless steel or light blocker isokinetic probe, sample tubing, zero count filter, two rolls of thermal paper, cloning cable, IQ/OQ documentation, manual, external exhaust fitting (as appropriate), and USB flash drive.

Accessories

. CI-302 High Pressure.
. Isokinetic stainless steel probe.
. Aluminum isokinetic probe.
. Scanning probe.
. HEPA filter.
. Telescopic tripod.
. Stainless steel table tripod.
. Battery.
. Battery charger.
. Thermal paper.
. Radiosterilized paper.
. Carrying case.
. Bev-a-line tubing.
. Software for downloading data.

Associated services

Equipment rental: available within 48 hours (depending availibilty). Full package including accessories, calibration certificate and consumable.

Customised IQ/OQ protocols developed according to your application.

Training session on site or in our office related to regulation, equipment use and data treatment.

Calibration and metrological services are performed in our laboratory located at Betton (35).
