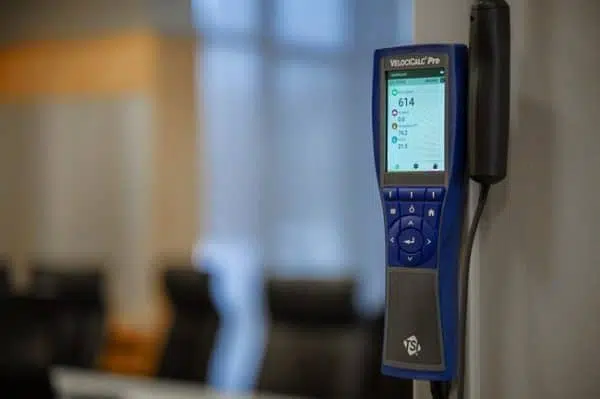

VelociCalc Multi-Function Ventilation Meter TSI 9600

. Large, high-resolution color display
. Intuitive menu structure allows for ease of use and setup
. Optional smart plug-in probes, including thermoanemometer, rotating vane and CO2 probes with calibration certificates
. Input for one K-alloy thermocouple
. User-customizable soft keys for quick access to common functions
. Calculate the percentage of outdoor air with IAQ probe
. Integrated magnets for hands-free operation
. Supports multiple languages
. Air density compensation with on board barometric pressure sensor and temperature input
. Print data from instrument with optional USB portable printer

Download the product sheet

SKU: caeef92a107e-1 Categories: Anemometers and balometers, Cleanroom qualifications, TSI

Need information

Share Product

Click here

Description

Specifications:
Velocity (Pitot probe, Model 9630 and 9650)
. Range: 250 to 15,500 ft/min (1.27 to 78.7 m/s)
. Accuracy: ±1.5% at 2,000 ft/min (10.16 m/s)
. Resolution: 1 ft/min (0.01 m/s)
Duct Size
. Dimensions: 1 to 500 inches in increments of 0.1 in. (2.5 to 1,270 cm in increments of 0.1 cm)
Volumetric Flow Rate
. Range: Actual range is a function of velocity, pressure, duct size, and K factor
Static/Differential Pressure (Models 9630 and 9650)
. Range: -15 to +15 in. H2O (-28.0 to +28.0 mm Hg, -3,735 to +3,735 Pa)
. Accuracy: ±1% of reading ±0.005 in. H2O (±0.01 mm Hg, ±1 Pa)
. Resolution: 0.001 in. H2O (0.1 Pa, 0.01 mm Hg)
Barometric Pressure
. Range: 20.36 to 36.648 in. Hg (517.15 to 930.87 mm Hg)
. Accuracy: ±2% of reading
Instrument Temperature Range
. Operating (Electronics): 40 to 113°F (5 to 45°C)
. Storage: -4 to 140°F (-20 to 60°C)
Data Storage Capabilities
. Range: 200 test IDs/162,200 samples (a sample is 1 or more
measurements)
Sample Interval
1 second to 1 hour
Time Constant
1, 5, 10, 20, 30, 60, 90 seconds
External Meter Dimensions
3.2 in. x 9.5 in. x 1.6 in. (8.1 cm x 24.1 cm x 4.1 cm)
Meter Weight with Batteries
0.9 lbs (0.41 kg)
Power Requirements
Four AA-size batteries or AC adapter

To Order
9600: Includes the meter, carrying case,4 AA alkaline batteries, USB cable, owner’s manual and calibration certificate
9600: with 980 probe
9600: with 982 probe
9600: with 995 probe
9600: with 960 probe
9600: with 962 probe

9630: Includes the meter, carrying case,
4 AA alkaline batteries, USB cable, one static pressure probe, 8 ft. (2.4 m) tubing, owner’s manual and calibration certificate
9630: with 982 probe
9630: with 964 probe
9630: with 966 probe

9650: Includes the meter, carrying case, 4 AA alkaline batteries, USB cable, one static pressure probe, 8 ft. (2.4 m) tubing, owners manual and calibration certificate
9650: with 964 probe
9650: with 966 probe

9650-NB: Includes the meter, carrying case, 4 AA alkaline batteries, USB cable, one static pressure probe, 8 ft. (2.4 m) tubing, owners manual and calibration certificate
9650-NB: with 964 probe
9650-NB: with 966 probe

Accessories

OPTIONAL PROBES: 792, 794, 960, 962, 964, 966, 980, 982, 995, and 800220
960: Thermoanemometer Telescopic Straight Probe Velocity and Temperature
962: Thermoanemometer Telescopic Articulating Probe Velocity and Temperature
964: Thermoanemometer Telescopic Straight Probe Velocity, Temperature and Humidity
966: Thermoanemometer Telescopic Articulating Probe Velocity, Temperature and Humidity
995: Rotating Vane 4 in. (100 mm) Probe Velocity
and Temperature
980: IAQ Probe C02, Temperature and Humidity
982: IAQ Probe Model CO, C02, Temperature and Humidity
792: Thermocouple Surface Temperature Probe (Type K)
794: Thermocouple Air Temperature Probe (Type K)
800220: Telescopic Air Temperature and Relative Humidity Probe

Associated services

. First level maintenance and repair work performed by Aerometrik.

. Taking charge of and monitoring the metrology of this equipment with TSI.
